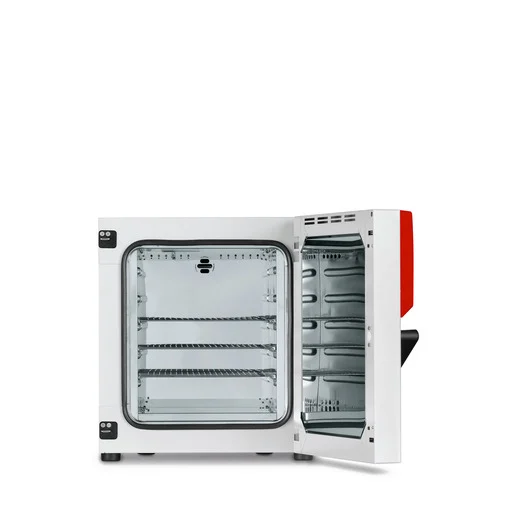

Drying and Heating Chamber with Gravity Convection 56L
The strengths of the ED series drying chamber include routine drying and sterilization tasks up to +300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Estimated Total (Incl. of all charges)
Excl. shipping & installation
Freight charges
$5,350
1 × $5,350
1 × $5,350
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
BENEFITS
• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to +300 °C
MAIN FEATURES
• Temperature range: +5 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
BENEFITS
• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to +300 °C
MAIN FEATURES
• Temperature range: +5 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
Physical Dimensions
SS Part No.
SS-9010-0334
Voltage
120V
Refrigerant
Airflow Performance
Binder Part No.
9010-0334
Weight (Kg)
86 lbs
ASHRAE 110
As-Manufactured (AM) and As-Installed (AI) performance test using SF₆ tracer gas. Included with every unit.
- ✓ Factory Certified
UL 1805
Underwriters Laboratories listing for laboratory furniture and fume hoods. Electrical components verified.
- ✓ UL Listed
OSHA 1910.1450
Occupational Exposure to Hazardous Chemicals in Laboratories standard (Lab Standard). Fully compliant.
- ✓ Compliant
